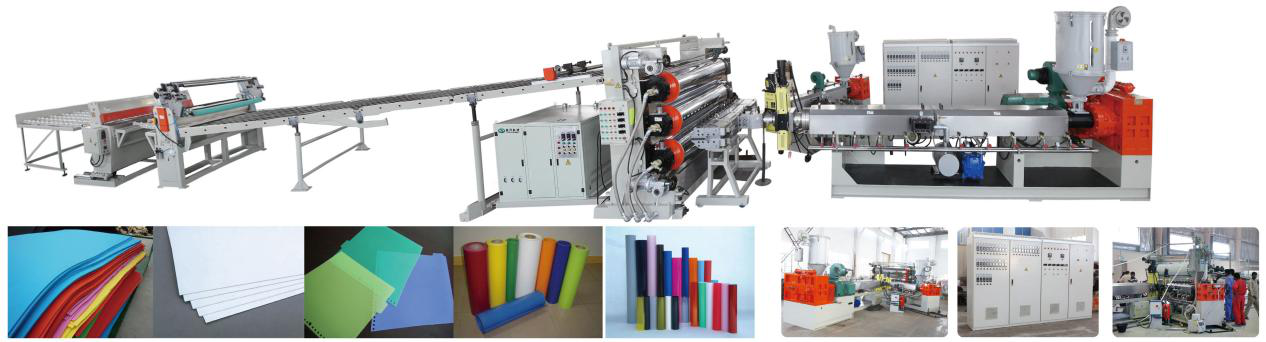

PVC,PE ABS Sheet Extrusion Line

Equipment composition: twin screw extruder (except for PVC single screw extruder), plate mold vertical three roller calendering machine (including laminating equipment), cooling guide roller, traction edge cutting device, cutting machine, stacking frame The main functi

Product description


Model

Multi layer

Single layer

Highly-effcient

Extruder specificationXH20/65-1000XH120-1000XH150-1500
Thickness of the product0.20-1.5mm0.20-1.5mm0.20-1.5mm

Main motor power

110kw/45kw110kw160kw
Capacity(Max)500kg/h450kg/h800kg/h

Equipment composition:  twin screw extruder (except for PVC single screw extruder), plate mold vertical three roller calendering machine (including laminating equipment), cooling guide roller, traction edge cutting device, cutting machine, stacking frame

The main function of the host machine is to plasticize raw materials.

Mold: extrude the plasticized raw material into the sheet we need.

Vertical three roller calender for plate mould (including laminating equipment) : independent power drive, make sheet surface more smooth.

Cooling rack: the extruded sheet is cooled and shaped while being pulled.(Natural cooling)

Traction edge cutting device: the speed is controlled by the frequency converter, and the products are pulled out synchronously according to the extruder production speed. Through the edge cutting device, the sheet is trimmed to the size we need.

Cutting machine;According to the length we set, automatically cut into the length we need.

Manipulator: automatic handling and stacking.
